Energy Series
Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service. These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.
MODELS
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | Thermal Break | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|
| 3220 | 2″ | Stucco | Flush | 20 Gauge | 9.1 | Thermally broken | 26’2″ | 20’0″ |
| 3213 | 2″ | Woodgrain | Raised panel | 24 Gauge | 9.1 | Thermally broken | 24’2″ | 18’0″ |
| 3211 | 2″ | Woodgrain | Flush | 24 Gauge | 9.1 | Thermally broken | 24’2″ | 18’0″ |
| 3200 | 2″ | Stucco | Minor ribbed | 24 Gauge | 9.1 | Thermally broken | 26’2″ | 20’0″ |
| 3155 | 1-3/8″ | Woodgrain | Flush panel | 27 Gauge | 6.5 | Thermally broken | 16’0″ | 16’0″ |
| 3154 | 1-3/8″ | Woodgrain | Raised panel | 27 Gauge | 6.5 | Thermally broken | 16’0″ | 16’0″ |
| 3150 | 1-3/8″ | Stucco | Minor ribbed | 27 Gauge | 6.5 | Thermally broken | 16’0″ | 16’0″ |
OPTIONS
Glass Panel Options
24" X 8" (3150, 3200, 3220)
24" X 12" (3150, 3200, 3220)
Full-View* (3150, 3200, 3220)
19-1/2" x 12" (3154, 3155, 3211, 3213)
*Intellicore® polyurethane insulated full-view sections available in models 3720, 3722 and 3724.
Glazing Material Options
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass
Obscure Glass
White Laminate Glass*
Black Laminate Glass*
Frosted Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 1/2″. Low-E available on insulated glass.
Color Options
Standard White
Almond
Desert Tan
Sandtone
Bronze
Mocha Brown
Gray
Charcoal
Chocolate
Black*
Trinar® White*
Trinar® Beige
Commercial Tan
Premium finishing options include:
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing available on full-view sections only
Performance Options Available
Double-end hinge
3" track
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Upgrade your standard door with industrial-grade components.
25,000, 50,000 or 100,000 cycle springs available.
Speciality Options Available
Mullions
Carry-away, roll-away or swing-up mullions are available on select sizes.
Break-Away Section
Single section and double sections available on select sizes.
Pass Door
32" wide x 80" high, max 16'2" wide section. Available in 2" thick doors only.
Safe-T-Stop™ Chain Hoist
The Safe-T-Stop is a controlled descent sectional door hand hoist with an integral braking system allowing users to operate the door with confidence.
SPECS/DRAWINGS
TRACK AND JAMB DRAWINGS
Track/Jamb
Drawing
DXF
BROCHURES

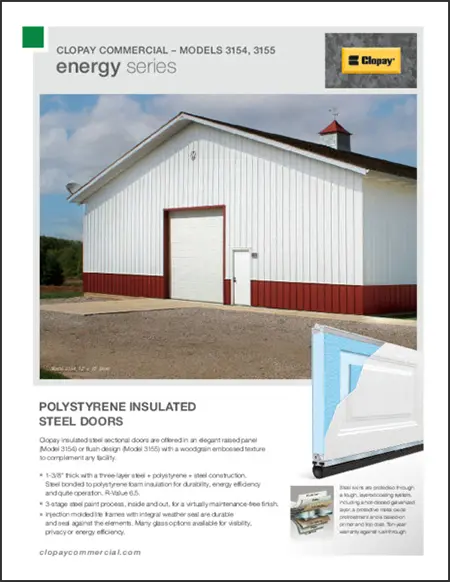

Model 3154 & 3155 Brochure
Clopay Insulated steel sectional doors come in contemporary or traditional styles with a charming woodgrain embossed texture.

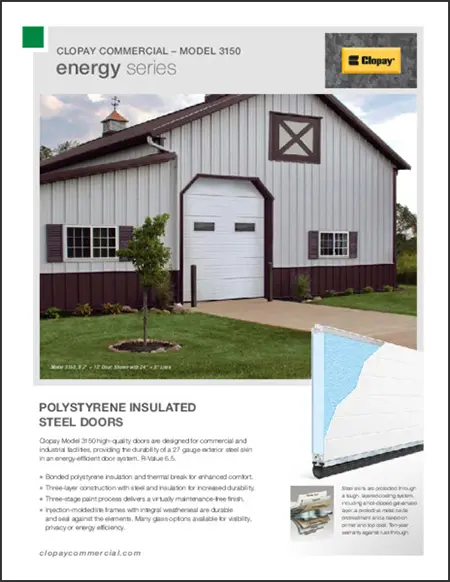

Model 3150 Brochure

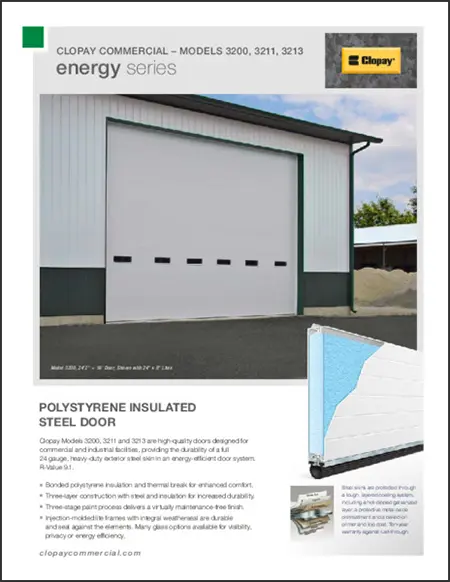

Model 3200-3211-3213 Brochure
Our Energy Series Models 3200, 3211, and 3233 doors come with bonded polystyrene insulation and are designed with a 24-gauge steel skin and R-Value 9.1 for energy efficiency and comfort.

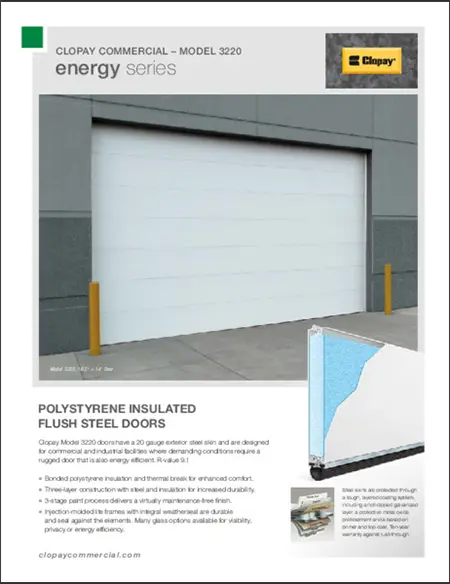

Brochure Model 3220

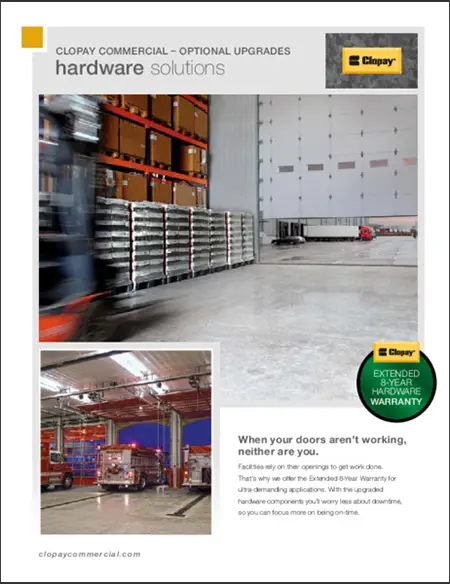

Extended 8-Year Hardware Warranty
SPRINGS AND HARDWARE
Commercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factor
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more about commercial track application
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for commercial torsion spring details
